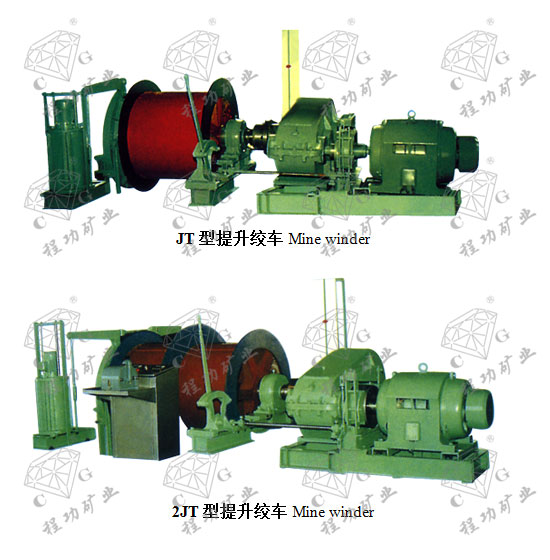

JT型提升绞车 Mine winder
JT型提升绞车可供煤矿、金属矿及非金属矿在倾斜巷道作升降物料和人员之用，也可作为小型竖井的提升设备。此外，还可在地下或地面作其它运输及辅助工作。
JT-型矿用提升绞车主要用于矿井运输、调车及斜坡提升物料之用。
Series JTMining hoisting winch is used in coal,metal,and non-metal mines for thepurpose of lifting and loweing materiel and personnel in inclined shafts,also is usedas lifting equioment in small shafts.
JTMining hoisting winch is mainiy used for transporting dispatshing cars.and lifting materiel is the inclined shafts.
| 型号规格 Model | ****拉力 Pull | ****拉力差 | 容绳量 Diameter | 卷筒 Drum | 钢丝绳 Rope | 减速比 | 功率 Power | 重量 weight | ||
| 直径 Diameter | 宽度 Width | 直径 Diamete | 速度 Veiocity | |||||||
| KN | KN | m | mm | mm | mm | m/s | kw | kg | ||
| JT-0.6 | 12 | 12 | 400 | 600 | 500 | 14 | 0.83 | 40 | 15 | 1500 |
| 2JT-0.6 | 12 | 10 | 320 | 600 | 400 | 14 | 0.85 | 40 | 15 | 2100 |
| JT-0.8 | 15 | 12 | 480 | 800 | 600 | 15.5 | 1.10 | 30 | 22/30 | 2100 |
| 2JT-0.8 | 15 | 12 | 400 | 800 | 500 | 15.5 | 1.17 | 30 | 22 | 2800 |
| JT-1.0 | 20 | 20 | 600 | 1000 | 800 | 18.5 | 1.70 | 31.5 | 40/45 | 3600 |
| 2JT-1.0 | 20 | 15 | 480 | 1000 | 600 | 18.5 | 1.75 | 31.5 | 37/40 | 4200 |
| JT-1.2 | 30 | 30 | 660 | 1200 | 1000 | 20 | 1.84/2.5 | 28 | 55/75 | 7200 |
| 2JT-1.2 | 30 | 20 | 520 | 1200 | 800 | 20 | 1.84/2.5 | 28 | 45/55 | 8690 |
| JT-1.6 | 45 | 45 | 880 | 1600 | 1200 | 24.5 | 2.0/2.6/3.4 | 24 | 95/110/155 | 13600 |
| 2JT-1.6 | 45 | 30 | 640 | 1600 | 900 | 24.5 | 4.0/3.06/2.4 | 24 | 130/110/95 | 15300 |
