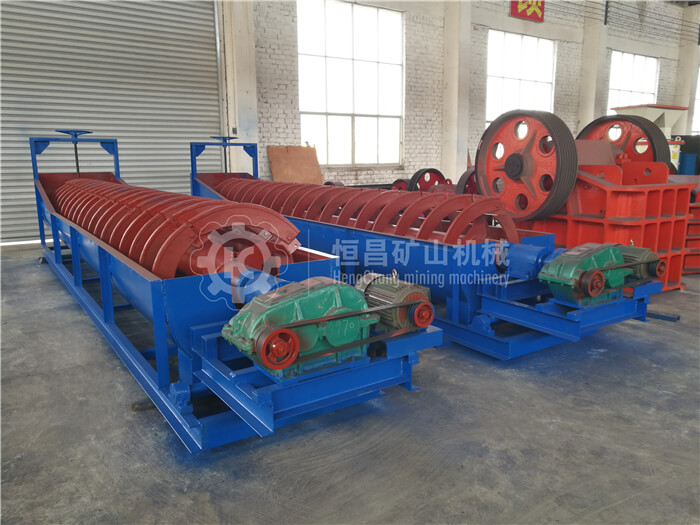

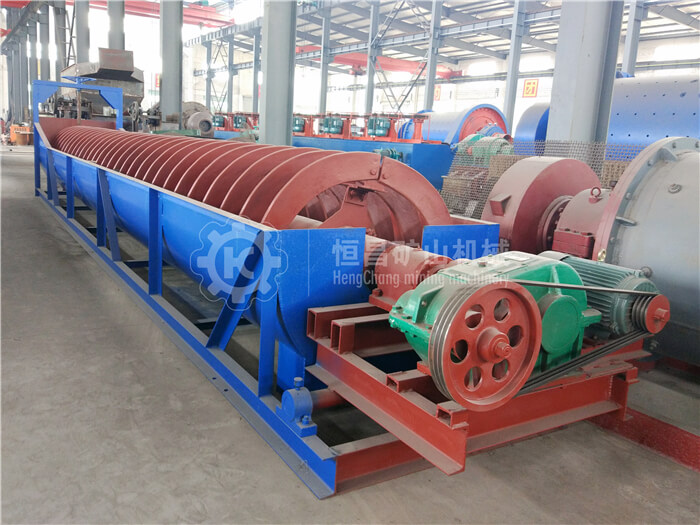

Spiral classifier is one of the classifying equipment in mineral processing. It is suitable for classifying materials in the mineral processing plant as well as the desliming and dehydrating in the mineral washing operating process and widely applied to separate the particles into a number of products graded according to size in the complete closed loop together with ball mill in the mining industry.
Gold, silver, lead, zinc, copper, molybdenum, iron, lead, manganese, tungsten, cement, ceramics, barite, bauxite, limestone, gypsum, calcium carbonate, coal, graphite, feldspar, potash feldspar, phosphorus ore, fluorite, clay and some other materials.
It is widely applied to the mining industry, such as separating light particles from heavy particles in the gravity separation process, separating fine particles and liquid from coarse particles in the metal ore processing, and separating the slurry or liquid from solid particles in ore processing plant.
1.High classifying efficiency
2.Powerful self-contained spiral lifting device
3.Optional automatic lubrication system
4.Rough tank and substructure
5.Wide choice of tank design
6.Overflow collection box
7.Wide range of industries serviced

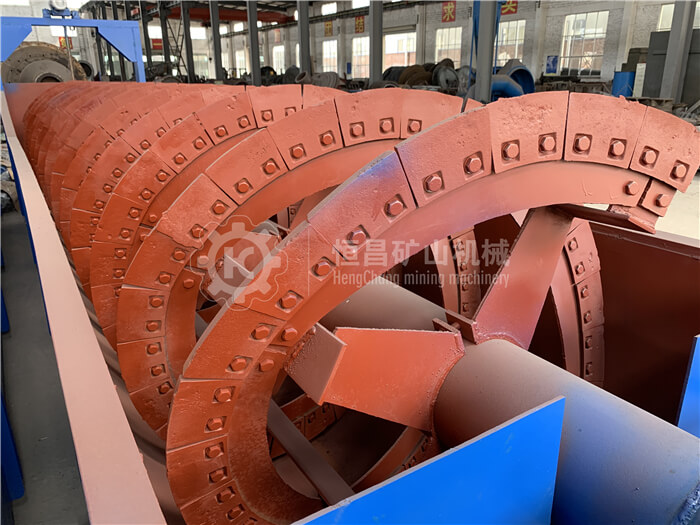

The grinded pulp is fed into tank from the inlet in the middle of settlement region, and the slurry classification sedimentation area is under the inclined tank. The spiral with low speed rotation stirs the slurry, so that the fine particles rise, and the coarse particles sinks to the bottom of tank. Overflow weir is above the bearing center which is under screw shaft, and is underneath overflow end.
|
Type |
Model |
Spiral Speed |
Chute Length |
Capacity of Returning |
Capacity of Overflow |
Drive Motor Power |
Lifting Motor Power |
Weight |
|
High weir single spiral classifier |
FLG-500 |
10.5 |
4500 |
145~260 |
32 |
1.1 |
Manual operation |
1600 |
|
FLG-750 |
7.8 |
5500 |
256~654 |
65 |
3 |
2716 |
||
|
FLG-1000 |
6.6 |
6500 |
473~1026 |
85 |
5.5 |
4000 |
||
|
FLG-1200 |
6 |
6500 |
1145~1600 |
155 |
5.5 |
1.5 |
7943 |
|
|
FLG-1500 |
2.5,4.4 |
8265 |
1140~2740 |
235 |
7.5 |
2.2 |
11680 |
|
|
FLG-2000 |
3.6,5.5 |
8400 |
3890~5940 |
400 |
11/15 |
3 |
20450 |
|
|
FLG-2400 |
3.6 |
9130 |
6800 |
580 |
22 |
3 |
24194 |
|
|
FLG-3000 |
3.2 |
12500 |
11625 |
890 |
30 |
4 |
37000 |
|
|
High weir double spirals classifier |
2FLG-1200 |
6 |
6500 |
2340~3200 |
310 |
5.5×2 |
1.5×2 |
15840 |
|
2FLG-1500 |
2.5,4.6 |
8250 |
2280~5480 |
470 |
7.5×2 |
2.2×2 |
22100 |
|
|
2FLG-2000 |
3.6,5.5 |
8400 |
7780~11880 |
800 |
15×2 |
3.0×2 |
34621 |
|
|
2FLG-2400 |
3.67 |
9130 |
13600 |
1160 |
18.5×2 |
3.0×2 |
42460 |
|
|
2FLG-3000 |
3.2 |
12500 |
23300 |
1785 |
22×2 |
4.0×2 |
73030 |
|
|
Submerged single |
FLC-1000 |
5 |
8400 |
473~1026 |
75 |
5.5 |
Manual operation |
5225 |
|
FLC-1200 |
5,6,7 |
8400 |
1150~1640 |
120 |
7.5 |
2.2 |
9583 |
|
|
FLC-1500 |
2.5,4.6 |
10500 |
1830~2740 |
185 |
7.5 |
2.2 |
14226 |
|
|
FLC-2000 |
3.6,5.5 |
12900 |
3240~5940 |
320 |
11/15 |
3 |
27753 |
|
|
FLC-2400 |
3.6 |
14130 |
6800 |
455 |
18.5 |
4 |
32467 |
|
|
FLC-3000 |
3.2 |
14300 |
11650 |
705 |
30 |
4 |
43500 |
|
|
Submerged double |
2FLC -1200 |
6 |
8400 |
2340~3260 |
240 |
7.5×2 |
1.5×2 |
19610 |
|
2FLC-1500 |
2.5,4.6 |
10500 |
2280~5480 |
370 |
7.5×2 |
2.2×2 |
27450 |
|
|
2FLC-2000 |
3.6,5.5 |
12900 |
7780~11880 |
640 |
15×2 |
3.0×2 |
50000 |
|
|
2FLC-2400 |
3.6 |
14130 |
13700 |
910 |
18.5×2 |
4.0×2 |
65283 |
|
|
2FLC-3000 |
3.2 |
14300 |
23300 |
1410 |
22×2 |
4.0×2 |
84900 |
