The African continent is rich in mineral resources, including platinum group metals, copper, cobalt, manganese, chromium, diamonds, germanium and other resources. Africa has huge reserves of mineral resources and has great potential for exploration and development. In recent years, the political stability of African countries has been stable, economic development has been steadily advancing, and social security has also improved, creating good conditions for attracting investment.

In the past two years, Roller Mgnetic Separator has caught the attention of African customers and is regarded as one of the most popular mining products in the African market.

The Roller magnetic separator is mainly used for titanium ore, chromite, garnet, quartz, feldspar, manganese ore, rare earth ore, niobium-tantalum ore, limonite, chromite, titanium ore, zircon, monazite, Selection and sorting of excellent magnetic difference minerals such as rutile, garnet, andalusite, and iron removal and purification operations.The magnetic separator can be configured with one roller, two rollers, three rollers, four rollers as per the ore condition and clients’ requirements.

1. This dry roller magnetic separator machine is used to sort a variety of magnetic mixed minerals with a particle size of 0-2mm. On the basis of the feasibility of magnetic separation, the iron is removed by a first-stage magnetic roller and the design of the strong magnetic roller is divided into sections. A variety of magnetic mixed minerals are selected. This machine is classified as a downstream structure according to the movement direction of the magnetic product and the incoming mineral to be selected. Pick and choose.The ore grade of this machine is two grades of concentrate and tailings.

2. The machine adopts the multi-stage selection design of permanent magnet magnetic system, and the work is stable, and the concentrate grade can be guaranteed even when the processing capacity is large.

3. The machine has compact structure, small volume, light weight, high efficiency, low power consumption, and is very beneficial to maintenance and repair.
4. The transmission principle of this machine is also very simple, the operation is convenient and simple, and the work efficiency is also very high.
5. The machine incorporates advanced electrical control technology, which makes the production operation convenient and easy to understand, and reduces the operator’s labor intensity while improving work efficiency.
6. There is an adjustable partition plate in the sorting bucket of this machine. The main trough, material guide trough and partition plate are all made of high wear-resistant stainless steel, which can effectively ensure the service life of the machine and avoid rust affecting the quality of minerals. Possibly; the dividing plate can be flexibly adjusted and fast fixed, which plays a great role in ensuring the quality of the ore position during the production process.
7. The electromagnetic speed-regulating motor is used to provide power to ensure the service life of the motor and the mechanical transmission power; the speed of ore dressing can be adjusted, and the multi-stage minerality can be sorted.

It can effectively separate multiple minerals at the same time, with simple operation and convenient maintenance. At the same time, we also customize single roller, two rollers, three rollers, four rollers or multiple rollers according to customer needs to meet the different needs of customers.

Three rollers high intensity magnetic separator:

Two rollers high intensity magnetic separator:

Specification:

Capacity:1-2 tons per hour;
Dry type;

Feeder hopper on the top of the machine;

Two rollers;

First roller size: diameter 160mm* length 1200mm, magnetic field intensity:13000 gauss;

Second roller size:diameter 160mm* length 1200mm, magnetic field intensity:13000 gauss;

Material: steel for the whole machine frame;

Adjust speed motors;

Electromagnetic speed regulation to adjust the roller speed;

Dimension:1700*1400*2250mm;

Usage: it is used for separate Tin ore(cassiterite), Zircon ore, Magnetic iron ore, Monazite ore, Rutile ore, silica sand, ther weak magnetic ore and so on.

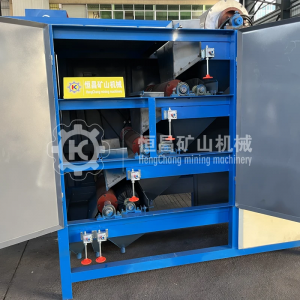

Four rollers high intensity magnetic separator:

Specification:

Capacity:2-5 tons per hour;
Dry type;

Feeder hopper on the top of the machine;

Four drums/rollers;

First drum size: diameter 440mm* length 1100mm, magnetic field intensity:1000 gauss-1500 gauss;

Second drum size:diameter 440mm* length 1100mm, magnetic field intensity:5000gauss-7000 gauss;

Third drum size:diameter 440mm* length 1100mm, magnetic field intensity:8000 gauss-10000 gauss;

Fourth roller size:diameter 220mm* length 1100mm, magnetic field intensity:15000 gauss;

Material: steel for the whole machine frame;

Frequency conversion motors;

 AC Inverter Controller to adjust the speed variation of EACH rollers/drums;

Electrc control pannel box to control the machine working;
